Stopper 130-25 System

Name: Stopper 130-25 System
Brand: Modular Framing Systems
SKU: PBP130-25
Availability: InStock

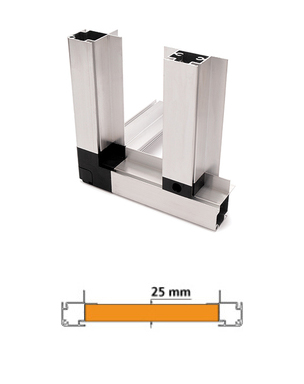

The Stopper 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP330-25 Corner Joint, PBP130-25 Perimeter Profile, GBP240-25 Omega Joint, and PBP331-25…

Select an image to view its details and choose what to add to your quote request.

Series: PBP130-25
Panel thickness: 25mm

Add all 7 parts

Request a quote →Request a sample

Or call 713-538-2050 · Mon–Fri 7am–4pm CT

The Stopper 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP330-25 Corner Joint, PBP130-25 Perimeter Profile, GBP240-25 Omega Joint, and PBP331-25 Omega Profile. Stopper Hardware includes the CBP-65-03 Hinge and B50FGC.BPO Panel Block.

Parts you can order

Each part of the Stopper 130-25 System has its own code. Add any of them to your quote request.

ABP330-25

Fiberglass Reinforced Nylon Corner Joint for PBP130-25 Profile

Weight:: 0.229 Lbs / 104 g
Material:: PA6 + GF20%
Fusion Temperature:: 225-240 C
Color:: Black
Additional Hardware:: VTE Machine Screws for Stopper Corners
Screw:: VTE6 x 65mm / Qty 1 necessary per corner
Screw:: VTE6 x 45mm / Qty 2 necessary per corner
Material:: Black Zinc Nickel

PBP130-25

Stopper System Perimeter Profile

Material:: 6063 Aluminum Extrusion
Dimensions:: 1.46″W x 1.46″H with 0.79″ Flange – Stock Length 20ft
Weight:: 0.635 Lbs/ft
Finish:: Mill
Treatment:: T5

GBP240-25

Fiberglass Reinforced Nylon Corner Joint for PBP331-25 Omega Profile

Weight:: 0.055 Lbs / 25 g
Material:: PA6 + GF20%
Fusion Temperature:: 225-240 C
Color:: Black

PBP331-25

Stopper System Omega Intermediate Support Profile

Material:: 6063 Aluminum Extrusion
Dimensions:: 1.57″W x 1.40″H with 0.79″ Flange – Stock Length 20ft
Weight:: 0.716 Lbs/ft
Finish:: Mill
Treatment:: T5

PBP-1000

Stopper System Panel Clip Profile

Material:: 6063 Aluminum Extrusion
Dimensions:: 0.95″W x 0.27″H – Stock Length 20ft
Weight:: 0.107 Lbs/ft
Finish:: Mill
Treatment:: T5

CBP-65-03

Stopper Hinge

Material:: EN AB 46100
Weight:: 0.220 Lbs / 100 g
Size:: 2.96″L x 2.36″W x 1.02″H
Finish:: Paint
Color:: Black

B50FGC.BPO

Stopper System Panel Retainer

Material:: Fiberglass Reinforced Nylon PA6 + GF 20%
Weight:: 0.044 Lbs / 20 g
Color:: Black
Compatibility:: Stopper system frames only

Used exclusively with Stopper system frames. For other framing systems, use B50FGC.
