Products
Frames
Choose from 4 different designs
Systems are designed to accommodate from a nominal 0.75″ up to 2″ of panel thickness in non-thermal break designs and 1″ up to 2″ in thermal break designs.
Standard
120-18

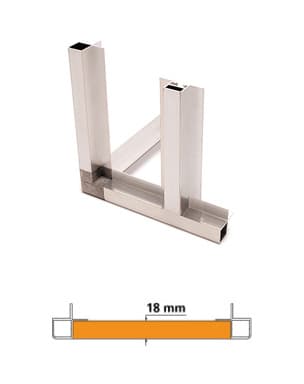

Standard 120-18 System
Panels 18mm
The Standard 120-18 System is designed to assemble units requiring a nominal 3/4 inch wall thickness. Components to this system include the A230-18 Corner Joint, P120-18 Perimeter Profile, and P220-18 Omega Profile.
140-25

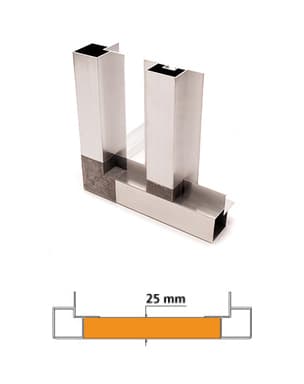

Standard 140-25 System
Panels 25mm
The Standard 140-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AC430-25 Corner Joint, P140-25 Perimeter Profile, GOP240-25 Omega Joint, P240-25 Omega Profile, and P340-25 Omega Profile. Fiberglass Reinforced Nylon…
150-25

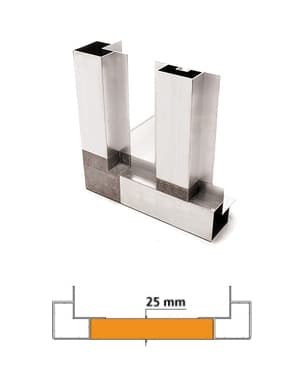

Standard 150-25 System
Panels 25mm
The Standard 150-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AC530-25 Corner Joint, P150-25 Perimeter Profile, GOP250-25 Omega Joint, P250-25 Omega Profile, P251-25 Omega Profile, and P350-25 Omega Profile.…
150-45

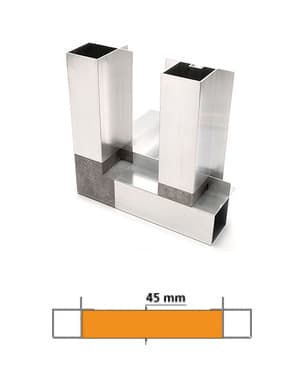

Standard 150-45 System
Panels 45mm
The Standard 150-45 System is designed to assemble units requiring a nominal 1 3/4 inch wall thickness. Aluminum components to this system include the AC530-45 Corner Joint, P150-45 Perimeter Profile, GOP250-45 Omega Joint, P250-45 Omega Profile, P251-45 Omega Profile, and P350-45 Omega Profile.…
170-50

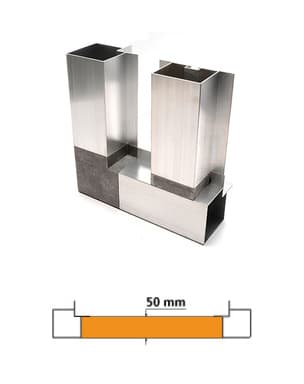

Standard 170-50 System
Panels 50mm
The Standard 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Aluminum components to this system include the AC730-50 Corner Joint, P170-50 Perimeter Profile, GOP270-50 Omega Joint, P270-50 Omega Profile, P271-50 Omega Profile, and P370-50 Omega Profile.
Blunted
130-25

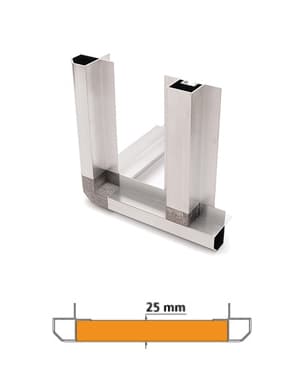

Blunted 130-25 System
Panels 25mm
The Blunted 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS330-25 Corner Joint, PS130-25 Perimeter Profile, GOP231-25 Omega Joint, and P231-25 Omega Profile.
140-25

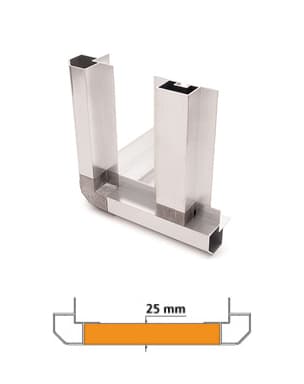

Blunted 140-25 System
Panels 25mm
The Blunted 140-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS430-25 Corner Joint, PS140-25 Perimeter Profile, GOP240-25 Omega Joint, P240-25 Omega Profile, and P340-25 Omega Profile.
150-25

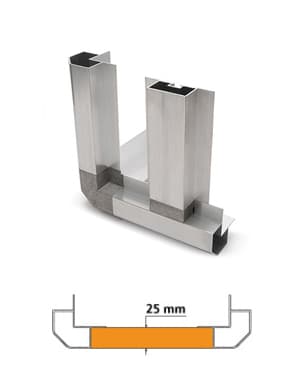

Blunted 150-25 System
Panels 25mm
The Blunted 150-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS530-25 Corner Joint, PS150-25 Perimeter Profile, GOP250-25 Omega Joint, P250-25 Omega Profile, P251-25 Omega Profile, and P350-25 Omega Profile.
150-45

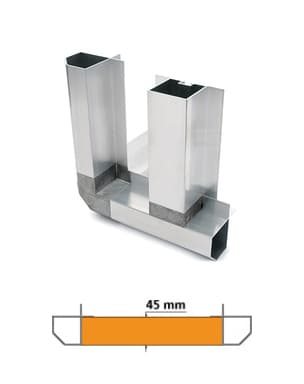

Blunted 150-45 System
Panels 45mm
The Blunted 150-45 System is designed to assemble units requiring a nominal 1.3/4 inch wall thickness. Aluminum components to this system include the AS530-45 Corner Joint, PS150-45 Perimeter Profile, GOP250-45 Omega Joint, P250-45 Omega Profile, P251-45 Omega Profile, and P350-45 Omega Profile.
170-50

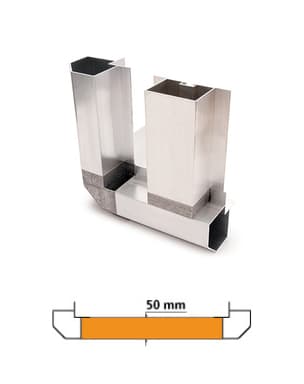

Blunted 170-50 System
Panels 50mm
The Blunted 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Aluminum components to this system include the AS730-50 Corner Joint, PS170-50 Perimeter Profile, GOP270-50 Omega Joint, P270-50 Omega Profile, P271-50 Omega Profile, and P370-50 Omega Profile.
Thermal Break
140-25

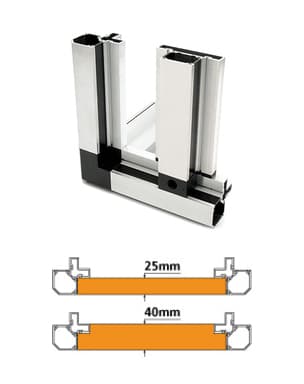

Thermal Break 140-25 System
Panels 25mm
The TB 140-25 System is designed to assemble units requiring a nominal 1 or 1 1/2 inch wall thickness. Components to this system include the AFGTT40-25 Corner Joint, PTT140-25 Perimeter Profile, GFGTT40-25 Omega Joint, and PTT240-25 Omega Profile.
150-45
Thermal Break Stopper 150-45 System
Panels 45mm
The Thermal Break Stopper 150-45 System is designed to assemble units requiring a nominal 1.75 up to 2 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP530-45 Corner Joint, ABPG530-45 Joining Corner, PTTBP150-45…
150-50

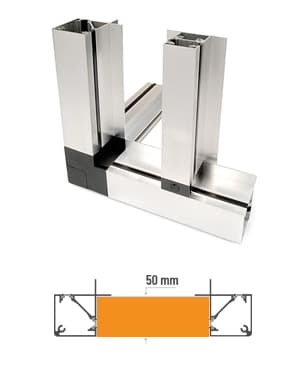

Thermal Break 150-50 System
Panels 50mm
The Thermal Break 150-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Components to this system include the ABP530-45 Corner Joint, ABPG530-45 Joining Corner, PTTBP150-50 Perimeter Profile, GBP250-45 Omega Joint, PTTBP351-50 Omega Profile, and PTTBP450-50 Joining…
160-45

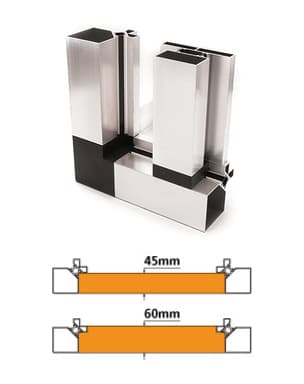

Thermal Break 160-45 System
Panels 45mm
The TB 160-45 System is designed to assemble units requiring a nominal 1.75 or 2.5 inch wall thickness. Components to this system include the APSAFG60-25 Corner Joint, APSTT160-45 Perimeter Profile, GFGTT60-45 Omega Joint, and APSTT260-45 Omega Profile.
170-50

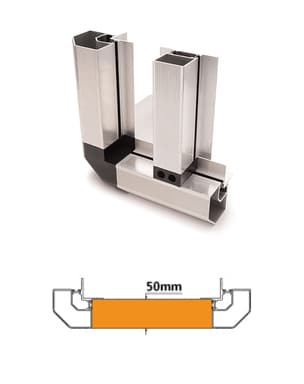

Thermal Break 170-50 System
Panels 50mm
The TB 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Components to this system include the ASFG70-50 Corner Joint, PTS170-50 Perimeter Profile, GFGTS40-50 Omega Joint, and PTS270-50 Omega Profile.
Stopper
PBP130-25

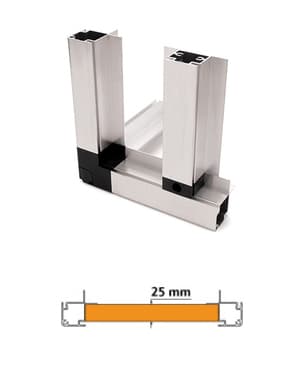

Stopper 130-25 System
Panels 25mm
The Stopper 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP330-25 Corner Joint, PBP130-25 Perimeter Profile, GBP240-25 Omega Joint, and PBP331-25…
PBP150-45

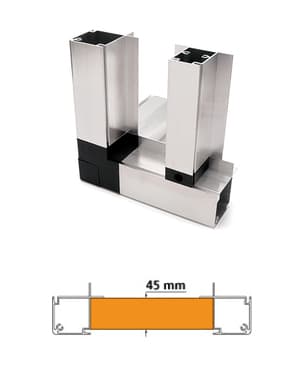

Stopper 150-45 System
Panels 45mm
The Stopper 150-45 System is designed to assemble units requiring a nominal 1.75 up to 2 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP530-45 Corner Joint, PBP150-45 Perimeter Profile, GBP250-45 Omega Joint, and…
150-45

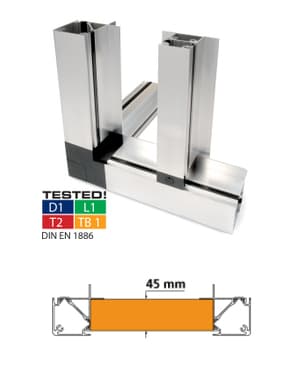

Thermal Break Stopper 150-45 System
Panels 45mm
The Thermal Break Stopper 150-45 System is designed to assemble units requiring a nominal 1.75 up to 2 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP530-45 Corner Joint, ABPG530-45 Joining Corner, PTTBP150-45…
Fiberglass
150-25

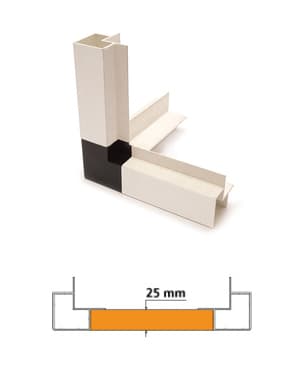

Fiberglass 150-25 System
Panels 25mm
The FG 150-25 System is a fiberglass pultrusion system designed to assemble units requiring a nominal 1 inch wall thickness. Components to this system include the AFG530-25 Corner Joint, PFG150-25 Perimeter Profile, GFG250-25 Omega Joint, and PFG250-25 Omega Profile.
