AS730-50
Blunted Corner Joint for PS170-50 Profile
- Weight:
- 2.006 Lbs / 910 g
- Material:
- EN AB 46100
- Finish:
- Natural
Blunted

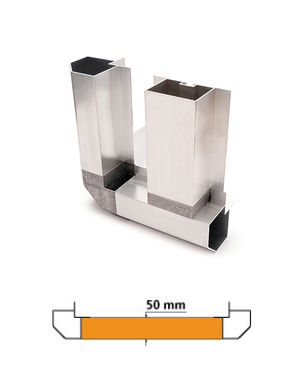

Blunted 170-50 System
The Blunted 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Aluminum components to this system include the AS730-50 Corner Joint, PS170-50 Perimeter Profile, GOP270-50 Omega Joint, P270-50 Omega Profile, P271-50 Omega Profile, and P370-50 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 170-50
- Panel thickness
- 50mm
- Material
- aluminum
Add all 5 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Blunted 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Aluminum components to this system include the AS730-50 Corner Joint, PS170-50 Perimeter Profile, GOP270-50 Omega Joint, P270-50 Omega Profile, P271-50 Omega Profile, and P370-50 Omega Profile.
Parts you can order
Each part of the Blunted 170-50 System has its own code. Add any of them to your quote request.
PS170-50
Blunted Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 2.76″W x 2.76″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 1.08 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GOP270-50
Omega Joint for P270-50, & P271-50 Intermediate Support Profiles
- Material:
- EN AB 46100
- Weight:
- 0.397 Lbs / 170 g
- Finish:
- Natural
P270-50
Omega Intermediate Support Profile with Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 2.76″W x 2.11″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 1.02 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P271-50
Omega Intermediate Support Profile, Smooth Interior, without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 2.76″W x 2.11″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.985 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
