AS330-25
Blunted Corner Joint for PS130-25 Profile
- Weight:
- 0.353 Lbs / 160 g
- Material:
- EN AB 46100
- Finish:
- Natural
Blunted

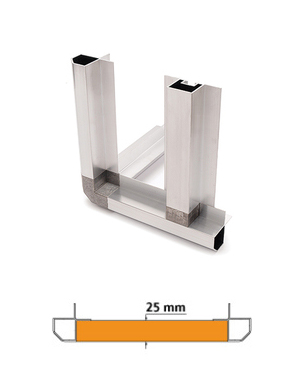

Blunted 130-25 System
The Blunted 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS330-25 Corner Joint, PS130-25 Perimeter Profile, GOP231-25 Omega Joint, and P231-25 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 130-25
- Panel thickness
- 25mm
- Material
- aluminum
Add all 4 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Blunted 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS330-25 Corner Joint, PS130-25 Perimeter Profile, GOP231-25 Omega Joint, and P231-25 Omega Profile.
Parts you can order
Each part of the Blunted 130-25 System has its own code. Add any of them to your quote request.
PS130-25
Blunted Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.18″W x 1.18″H with 0.75″ Flange Stock Length 20ft
- Weight:
- 0.406 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GOP231-25
Omega Joint for P231-25 Intermediate Support Profile
- Material:
- EN AB 46100
- Weight:
- 0.095 Lbs / 43 g
- Finish:
- Natural
P231-25
Omega Intermediate Support Profile with Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.18″W x 1.12″H with 0.75″ Flange – Stock Length 20ft
- Weight:
- 0.474 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
