AS430-25
Blunted Corner Joint for PS140-25 Profile
- Weight:
- 0.560 Lbs / 254 g
- Material:
- EN AB 46100
- Finish:
- Natural
Blunted

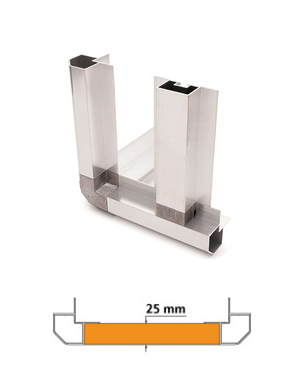

Blunted 140-25 System
The Blunted 140-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS430-25 Corner Joint, PS140-25 Perimeter Profile, GOP240-25 Omega Joint, P240-25 Omega Profile, and P340-25 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 140-25
- Panel thickness
- 25mm
- Material
- aluminum
Add all 5 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Blunted 140-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS430-25 Corner Joint, PS140-25 Perimeter Profile, GOP240-25 Omega Joint, P240-25 Omega Profile, and P340-25 Omega Profile.
Parts you can order
Each part of the Blunted 140-25 System has its own code. Add any of them to your quote request.
PS140-25
Blunted Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.57″W x 1.57″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.608 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GOP240-25
Omega Joint for P240-25 & P340-25 Intermediate Support Profiles
- Material:
- EN AB 46100
- Weight:
- 0.117 Lbs / 53 g
- Finish:
- Natural
P240-25
Omega Intermediate Support Profile with Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.57″W x 1.12″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.554 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P340-25
Omega Intermediate Support Profile without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.57″W x 1.12″H with 0.79″ Flange – Stock Length 236″ / 6m
- Weight:
- 0.539 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
