AS530-45
Blunted Corner Joint for PS150-45 Profile
- Weight:
- 0.891 Lbs / 404 g
- Material:
- EN AB 46100
- Finish:
- Natural
Blunted

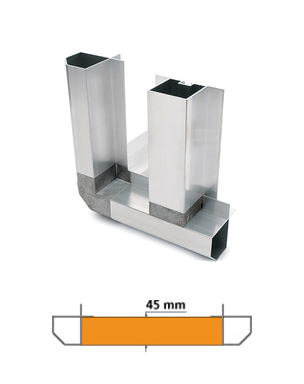

Blunted 150-45 System
The Blunted 150-45 System is designed to assemble units requiring a nominal 1.3/4 inch wall thickness. Aluminum components to this system include the AS530-45 Corner Joint, PS150-45 Perimeter Profile, GOP250-45 Omega Joint, P250-45 Omega Profile, P251-45 Omega Profile, and P350-45 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 150-45
- Panel thickness
- 45mm
- Material
- aluminum
Add all 6 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Blunted 150-45 System is designed to assemble units requiring a nominal 1.3/4 inch wall thickness. Aluminum components to this system include the AS530-45 Corner Joint, PS150-45 Perimeter Profile, GOP250-45 Omega Joint, P250-45 Omega Profile, P251-45 Omega Profile, and P350-45 Omega Profile.
Parts you can order
Each part of the Blunted 150-45 System has its own code. Add any of them to your quote request.
PS150-45
Blunted Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.711 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GOP250-45
Omega Joint for P250-45, P251-45 & P350-45 Intermediate Support Profiles
- Material:
- EN AB 46100
- Weight:
- 0.265 Lbs / 120 g
- Finish:
- Natural
P250-45
Omega Intermediate Support Profile with Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.935 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P251-45
Omega Intermediate Support Profile, Smooth Interior, without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 1.016 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P350-45
Omega Intermediate Support Profile without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.732 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
