AS530-25
Blunted Corner Joint for PS150-25 Profile
- Weight:
- 0.928 Lbs / 421 g
- Material:
- EN AB 46100
- Finish:
- Natural
Blunted

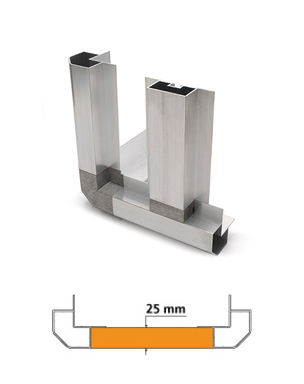

Blunted 150-25 System
The Blunted 150-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS530-25 Corner Joint, PS150-25 Perimeter Profile, GOP250-25 Omega Joint, P250-25 Omega Profile, P251-25 Omega Profile, and P350-25 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 150-25
- Panel thickness
- 25mm
- Material
- aluminum
Add all 6 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Blunted 150-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS530-25 Corner Joint, PS150-25 Perimeter Profile, GOP250-25 Omega Joint, P250-25 Omega Profile, P251-25 Omega Profile, and P350-25 Omega Profile.
Parts you can order
Each part of the Blunted 150-25 System has its own code. Add any of them to your quote request.
PS150-25
Blunted Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.697 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GOP250-25
Omega Joint for P250-25, P251-25 & P350-25 Intermediate Support Profiles
- Material:
- EN AB 46100
- Weight:
- 0.117 Lbs / 53 g
- Finish:
- Natural
P250-25
Omega Intermediate Support Profile with Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.13″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.780 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P251-25
Omega Intermediate Support Profile, Smooth Interior, without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.13″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.862 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P350-25
Omega Intermediate Support Profile without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.13″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.601 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
