A230-18
Corner Joint for P120-18 Perimeter Profile
- Weight:
- 0.168 Lbs / 76 g
- Material:
- EN AB 46100
- Finish:
- Natural
Standard

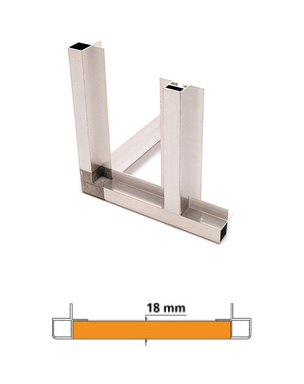

Standard 120-18 System
The Standard 120-18 System is designed to assemble units requiring a nominal 3/4 inch wall thickness. Components to this system include the A230-18 Corner Joint, P120-18 Perimeter Profile, and P220-18 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 120-18
- Panel thickness
- 18mm
Add all 3 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Standard 120-18 System is designed to assemble units requiring a nominal 3/4 inch wall thickness. Components to this system include the A230-18 Corner Joint, P120-18 Perimeter Profile, and P220-18 Omega Profile.
Parts you can order
Each part of the Standard 120-18 System has its own code. Add any of them to your quote request.
P120-18
Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 0.79″W x 0.79″H with 0.59″ Flange – Stock Length 20ft
- Weight:
- 0.289 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P220-18
Omega Intermediate Support Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 0.79″W x 0.79″H with 0.59″ Flange – Stock Length 20ft
- Weight:
- 0.336 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
