AC530-25
Corner Joint for P150-25 Profile
- Weight:
- 0.981 Lbs / 445 g
- Material:
- EN AB 46100
- Finish:
- Natural
Standard

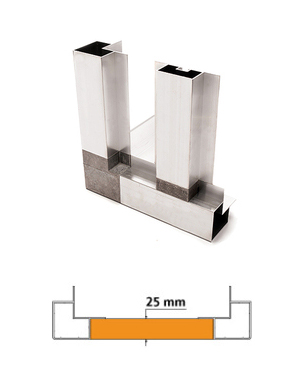

Standard 150-25 System
The Standard 150-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AC530-25 Corner Joint, P150-25 Perimeter Profile, GOP250-25 Omega Joint, P250-25 Omega Profile, P251-25 Omega Profile, and P350-25 Omega Profile.…
Select an image to view its details and choose what to add to your quote request.
- Series
- 150-25
- Panel thickness
- 25mm
- Material
- nylon
Add all 8 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Standard 150-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AC530-25 Corner Joint, P150-25 Perimeter Profile, GOP250-25 Omega Joint, P250-25 Omega Profile, P251-25 Omega Profile, and P350-25 Omega Profile. Fiberglass Reinforced Nylon hardware is also available for this system. Corner Joint AFG530-25 is the nylon alternative for aluminum Corner Joint AC530-25, and Omega Joint GFG250-25 is the alternative to our GOP250-25.
Parts you can order
Each part of the Standard 150-25 System has its own code. Add any of them to your quote request.
AFG530-25
Fiberglass Reinforced Nylon Corner Joint for P150-25 Profile
- Weight:
- 0.397 Lbs / 180 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black
P150-25
Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.755 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GOP250-25
Omega Joint for P250-25, P251-25 & P350-25 Intermediate Support Profiles
- Material:
- EN AB 46100
- Weight:
- 0.117 Lbs / 53 g
- Finish:
- Natural
GFG250-25
Fiberglass Reinforced Nylon Omega Joint for P250-25, P251-25 and P350-25 Intermediate Support Profiles
- Weight:
- 0.046 Lbs / 21 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black
P250-25
Omega Intermediate Support Profile with Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.13″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.780 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P251-25
Omega Intermediate Support Profile, Smooth Interior, without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.13″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.862 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P350-25
Omega Intermediate Support Profile without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.13″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.601 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
