AC530-45
Corner Joint for P150-45 Profile
- Weight:
- 1.047 Lbs / 475 g
- Material:
- EN AB 46100
- Finish:
- Natural
Standard

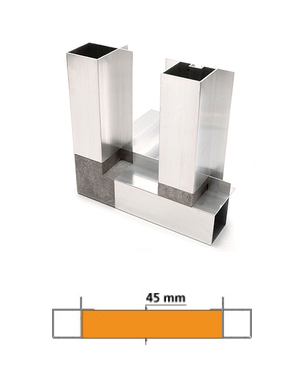

Standard 150-45 System
The Standard 150-45 System is designed to assemble units requiring a nominal 1 3/4 inch wall thickness. Aluminum components to this system include the AC530-45 Corner Joint, P150-45 Perimeter Profile, GOP250-45 Omega Joint, P250-45 Omega Profile, P251-45 Omega Profile, and P350-45 Omega Profile.…
Select an image to view its details and choose what to add to your quote request.
- Series
- 150-45
- Panel thickness
- 45mm
- Material
- nylon
Add all 8 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The Standard 150-45 System is designed to assemble units requiring a nominal 1 3/4 inch wall thickness. Aluminum components to this system include the AC530-45 Corner Joint, P150-45 Perimeter Profile, GOP250-45 Omega Joint, P250-45 Omega Profile, P251-45 Omega Profile, and P350-45 Omega Profile. Fiberglass Reinforced Nylon hardware is also available for this system. Corner Joint AFG530-45 is the nylon alternative for aluminum Corner Joint AC530-45, and Omega Joint GFG250-45 is the alternative to our GOP250-45.
Parts you can order
Each part of the Standard 150-45 System has its own code. Add any of them to your quote request.
AFG530-45
Fiberglass Reinforced Nylon Corner Joint for P150-45 Profile
- Weight:
- 0.426 Lbs / 193 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black
P150-45
Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.768 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GOP250-45
Omega Joint for P250-45, P251-45 & P350-45 Intermediate Support Profiles
- Material:
- EN AB 46100
- Weight:
- 0.265 Lbs / 120 g
- Finish:
- Natural
GFG250-25
Fiberglass Reinforced Nylon Omega Joint for P250-45, P251-45 and P350-45 Intermediate Support Profiles
- Weight:
- 0.101 Lbs / 246 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black
P250-45
Omega Intermediate Support Profile with Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.935 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P251-45
Omega Intermediate Support Profile, Smooth Interior, without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 1.016 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
P350-45
Omega Intermediate Support Profile without Bolt Track
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 0.732 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
