AFGTT40-25
Fiberglass Reinforced Nylon Corner Joint for PTT140-25 Profile
- Weight:
- 0.284 Lbs / 129 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black

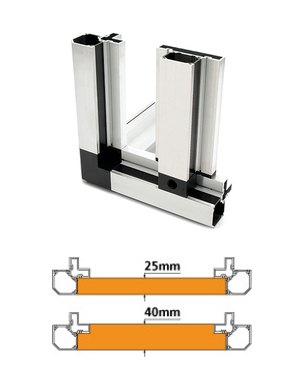

Thermal Break
Thermal Break 140-25 System
The TB 140-25 System is designed to assemble units requiring a nominal 1 or 1 1/2 inch wall thickness. Components to this system include the AFGTT40-25 Corner Joint, PTT140-25 Perimeter Profile, GFGTT40-25 Omega Joint, and PTT240-25 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 140-25
- Panel thickness
- 25mm
- Thermal break
- Yes
Add all 4 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The TB 140-25 System is designed to assemble units requiring a nominal 1 or 1 1/2 inch wall thickness. Components to this system include the AFGTT40-25 Corner Joint, PTT140-25 Perimeter Profile, GFGTT40-25 Omega Joint, and PTT240-25 Omega Profile.
Parts you can order
Each part of the Thermal Break 140-25 System has its own code. Add any of them to your quote request.
PTT140-25
Thermal Break Perimeter Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.57″W x 1.65″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 1.001 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
GFGTT40-25
Fiberglass Reinforced Nylon Omega Joint for PTT240-25 Intermediate Support Profile
- Weight:
- 0.064 Lbs / 29 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black
PTT240-25
Thermal Break Omega Intermediate Support Profile
- Material:
- 6063 Aluminum Extrusion
- Dimensions:
- 1.57″W x 1.65″H with 0.79″ Flange – Stock Length 20ft
- Weight:
- 1.156 Lbs/ft
- Finish:
- Mill
- Treatment:
- T5
