How to Install Panels and Skin a Unit

Start Here — Step 3: compare Standard and Stopper panel installation, plan gaskets and clearances, and understand common sheet-metal skinning techniques.

Start Here — Step 3 of 3

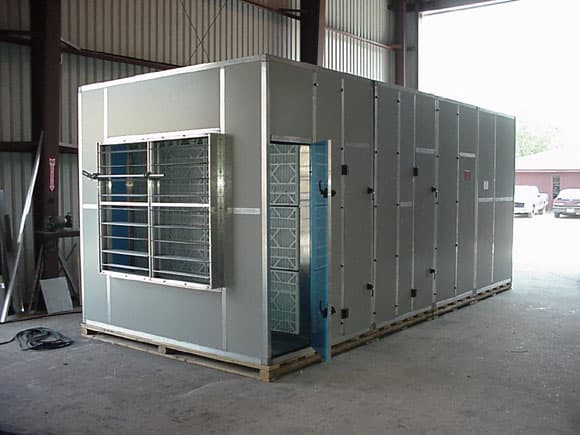

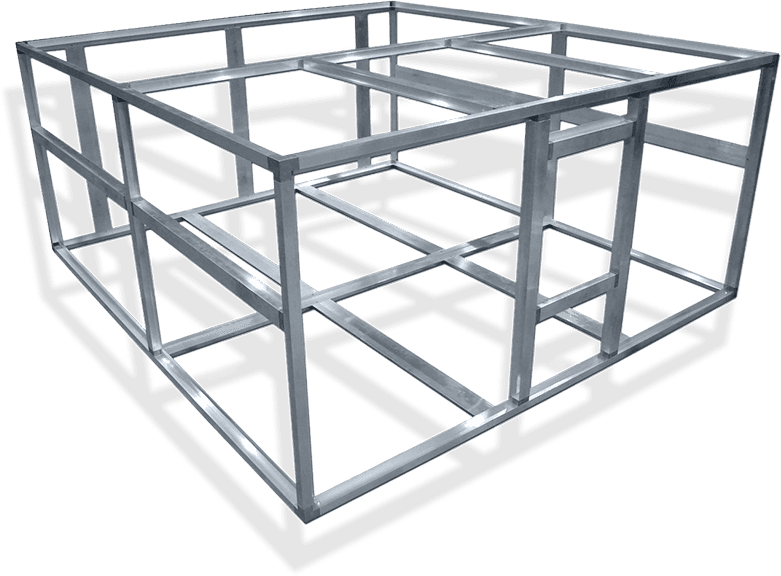

With the frame and intermediate supports in place, choose how to enclose the unit: install prefabricated panels or fabricate inner and outer sheet-metal skins. The approach depends on the framing system, panel thickness, access requirements, and your shop’s equipment.

Measure openings and plan the seal

Use the assembled opening dimensions and account for panel-production tolerance, clearance, and gasket compression. Our sizing guide lists a standard panel-production tolerance of ±1/16″. Its fixed-panel example reduces both width and height by 1/8″ overall: a 24″ × 36″ opening receives a 23-7/8″ × 35-7/8″ panel.

That is a fixed-panel example, not a universal door or Stopper-system allowance. Swing doors and different hardware arrangements require their own clearances. Confirm your selected system before cutting.

MFS offers adhesive-backed, closed-cell neoprene gasket tape measuring 3/4″ wide × 1/8″ thick. Use a gasket that meets your project specifications and coordinate panel thickness, gasket thickness, and compression.

Panels in Standard systems

Standard framing uses fasteners to attach the panel to the profile. The existing MFS guide illustrates internal attachment, external attachment, and external attachment using a BFG bushing. The table below summarizes its Standard and Blunted examples.

Panel thicknessInternal attachment exampleExternal attachment exampleBushing option
1″ (25 mm)3/4″ screw1-1/2″ screwBFG25
1.75″ (45 mm)3/4″ screw2-1/4″ screwBFG45
2″ (50 mm)3/4″ screw2-1/2″ screwBFG50

These are the published examples for those configurations; fastener selection must suit the actual profile and panel stack. Thermal-break systems can use different attachment details.

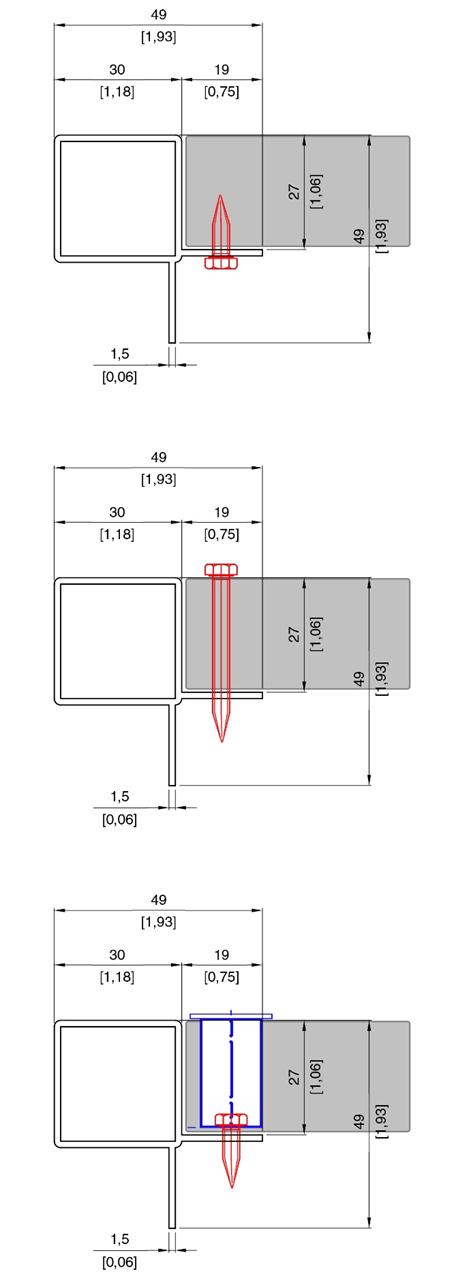

Attachment examples for Standard and Blunted 1″ panels
Attachment examples for Standard and Blunted 1″ panels

Using a BFG bushing

The referenced method uses a 3/4″ sheet-metal screw or 1″ self-drilling screw. Pre-drill a 1/8″ pilot hole through the surfaces at the screw location. Make the 1/2″ bushing hole in the exterior skin only, not through both panel skins. Refer to the diagram and choose the bushing for the intended configuration.

Panels in Stopper systems

Stopper systems retain panels without panel-attachment fasteners. Use the matching profile and stopper arrangement for the panel thickness and follow the system-specific diagrams and installation video. Panel fit and gasket compression remain important.

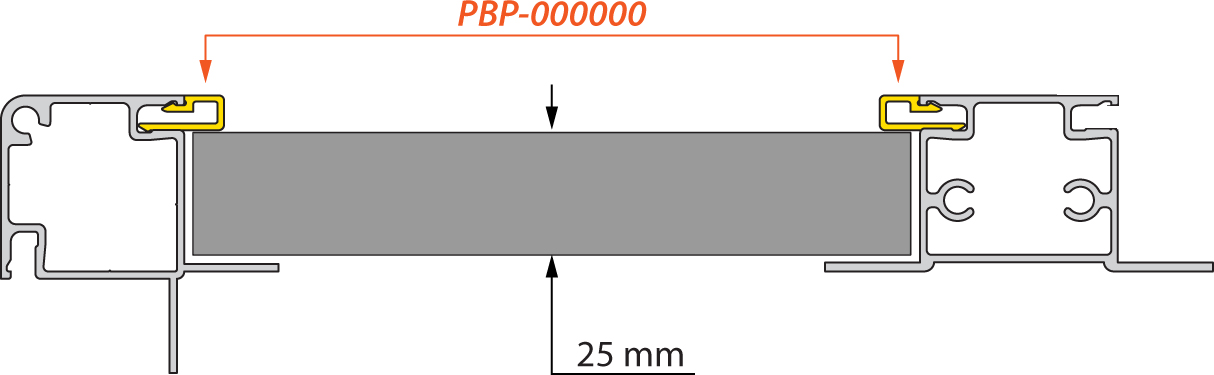

130-25 Stopper System panel-retention concept
130-25 Stopper System panel-retention concept

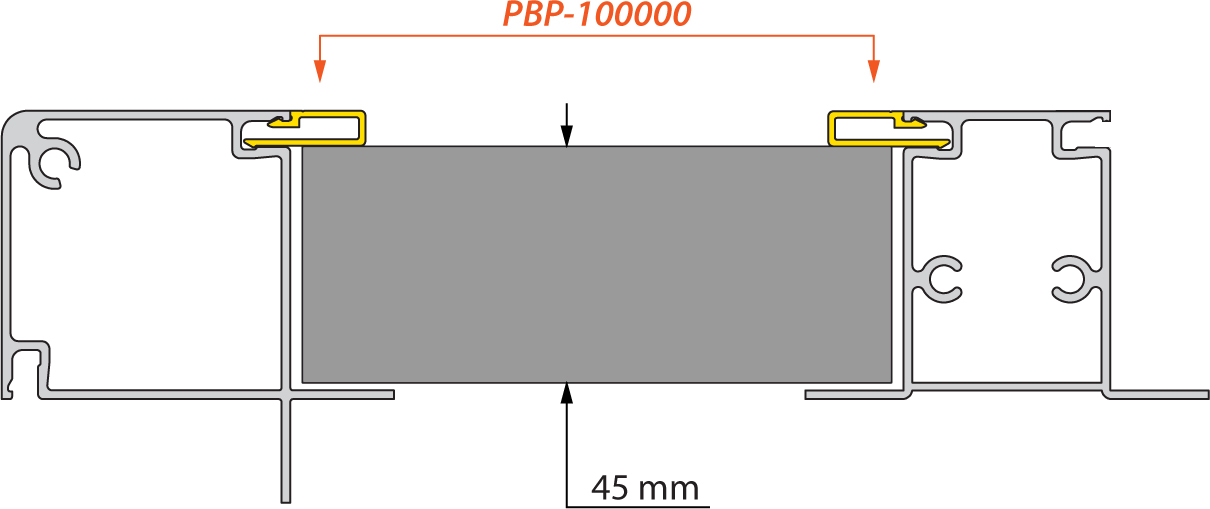

150-45 Stopper System panel-retention concept
150-45 Stopper System panel-retention concept

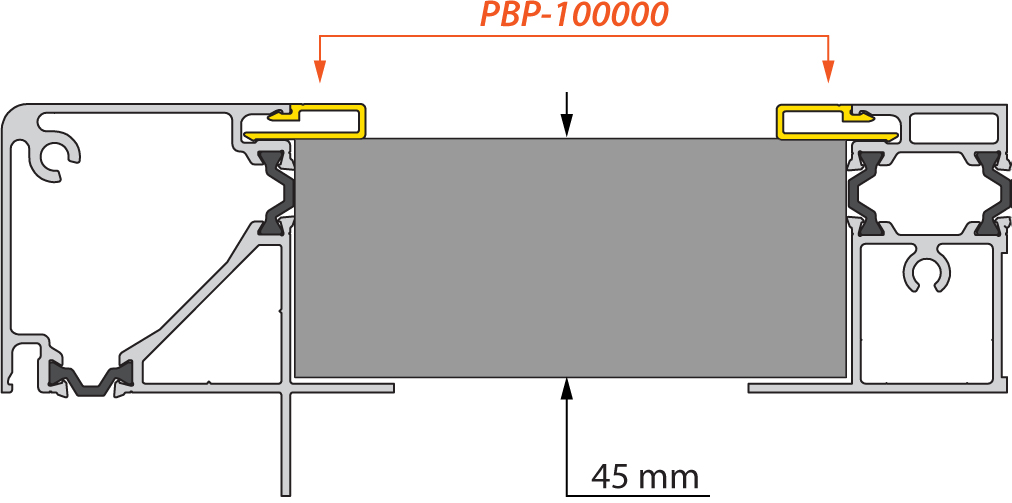

150-45 Thermal Break Stopper System panel-retention concept
150-45 Thermal Break Stopper System panel-retention concept

Skinning a unit with sheet metal

Skinning is a fabrication method rather than one fixed recipe. Inner sheets, insulation, outer sheets, overlaps, and roof details must work with your shop’s equipment and the unit’s operating conditions.

Negative-pressure sections

One illustrated technique places the inner flat sheet against the framing flange, followed by insulation and the outer skin. Negative pressure draws that inner sheet toward the gasket. Plan the overlapping edges at corners.

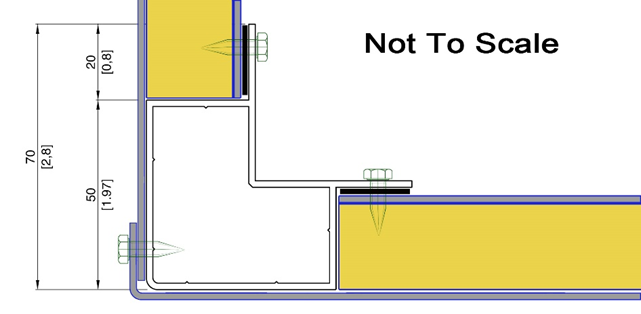

Sheet-metal skinning example for a negative-pressure section
Sheet-metal skinning example for a negative-pressure section

Positive-pressure sections

The alternate arrangement shifts the inner skin to cover the inside of the frame so positive pressure pushes it toward the gasket. Select the arrangement for the pressure conditions in that section of the unit.

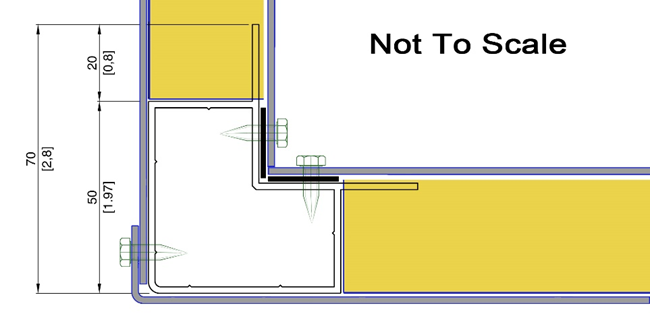

Sheet-metal skinning example for a positive-pressure section
Sheet-metal skinning example for a positive-pressure section

Floors and tread plate

For floors or tread plate, the source example places the inner skin on top of the flange. Compatible caulk or silicone may supplement the gasket where the design requires it.

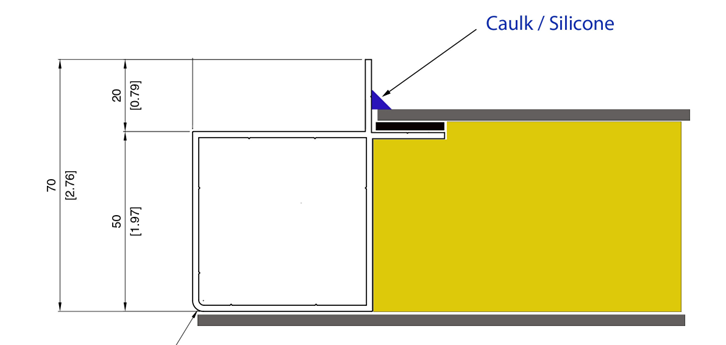

Floor or tread-plate skin placed on top of the flange
Floor or tread-plate skin placed on top of the flange

Roof caps and rain-diversion lip

Roof caps should extend over any seams across the top of the unit, and it is good practice to create a rain diversion bend at the bottom edge of the downward flange. Pay attention to the location of doors and access panels so you do not extend the roof cap to a point where it obstructs the function of those components. Standing seams are often used for larger roofs that require multiple sheets of metal.

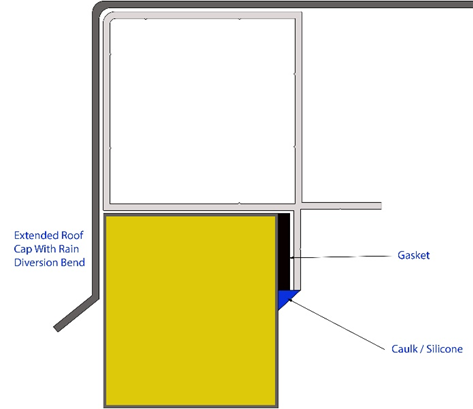

Roof cap detail showing the rain-diversion lip at the bottom of the downward flange
Roof cap with a rain-diversion lip at the bottom of the downward flange.
