Durable and Versatile: 25mm & 45mm Galvanized Insulated Panels for Demanding Applications

---

At Modular Framing Systems, we offer more than just modular framing — we provide high-performance solutions for climate control, soundproofing, and structural stability. Our P3isomac galvanized panels are built to meet the needs of industrial and commercial environments, and are now available in two thickness options: 25mm and 45mm.

With a water-foam injected polyurethane core and double galvanized steel sheathing, these panels combine strength, insulation, and durability in one package.

---

🔹 Key Features of Both Panels

• Superior Thermal Efficiency:
  Engineered with polyurethane insulation, each panel offers an initial thermal conductivity of 0.024 W/(m·°C) for excellent energy performance.
• Double Galvanized Steel Sheathing:
  Both sides are protected with 0.5 mm galvanized steel, one side pre-varnished white-gray (similar to RAL 9002), offering corrosion resistance and clean aesthetics.
• Safe & Eco-Conscious:
  Polyurethane foam is water-expanded — contains no HCF, CFC, or HFC.
• High Soundproofing Performance:
  Sound reduction rating of Rw 40 dB (ISO 140/10), making it ideal for noise-sensitive applications.
• Wide Temperature Range:
  Suitable for use from –40 °C to +80 °C (–40 °F to +176 °F), maintaining performance in extreme conditions.

---

🔸 Panel Comparison

Feature	Panel 16ZG25	Panel 16ZG50
Thickness	25 mm	45 mm
Length	3020 mm	3020 mm
Width	1250 mm	1250 mm
PUR Foam Density	47 kg/m³	45 kg/m³
Sound Insulation	Rw 40 dB	Rw 40 dB
Applications	Ideal for lightweight cladding, ceiling panels, and partitions	Ideal for applications requiring enhanced thermal and acoustic insulation

---

🛠 Designed for Industrial Demands

These panels are engineered for modular adaptability and are perfect for:

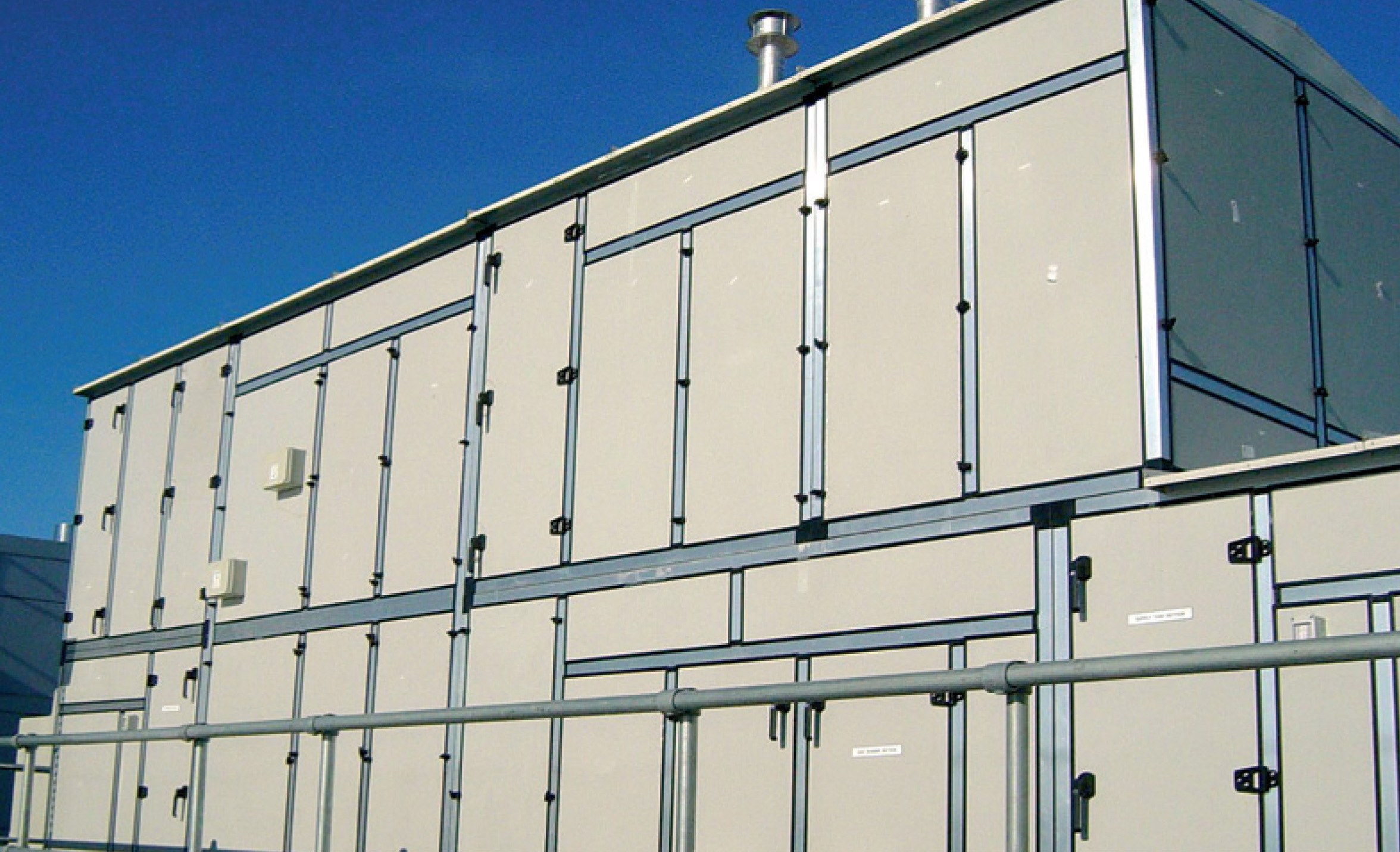

• Air handling units & HVAC systems
• Machine tool enclosures
• Industrial gate panelling
• Cold storage or refrigeration counter covers
• Modular ceilings and movable walls

---

✅ A Smart Choice for Smarter Construction

Whether you’re looking for the streamlined build of the 25mm panel or the added insulation of the 45mm version, these galvanized panels offer excellent performance in compact, modular form.

🛒 Reach out to us today to learn more or request a quote.
