PS100
Blade
- Material:
- Aluminum 6063
- Dimension:
- 4 in / 100 mm
- Treatment:
- T5
- Finish:
- Mill
- GA12T Gasket:
- TPE-V and PP Thermoplastic Rubber
Part# PS100
Dampers

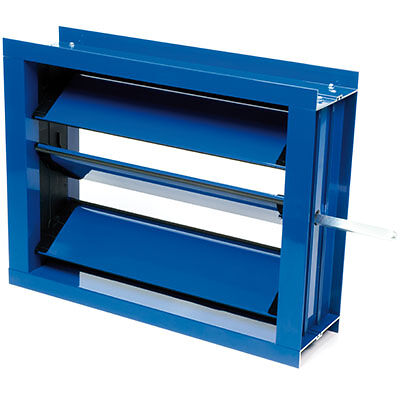

Low Leakage Damper

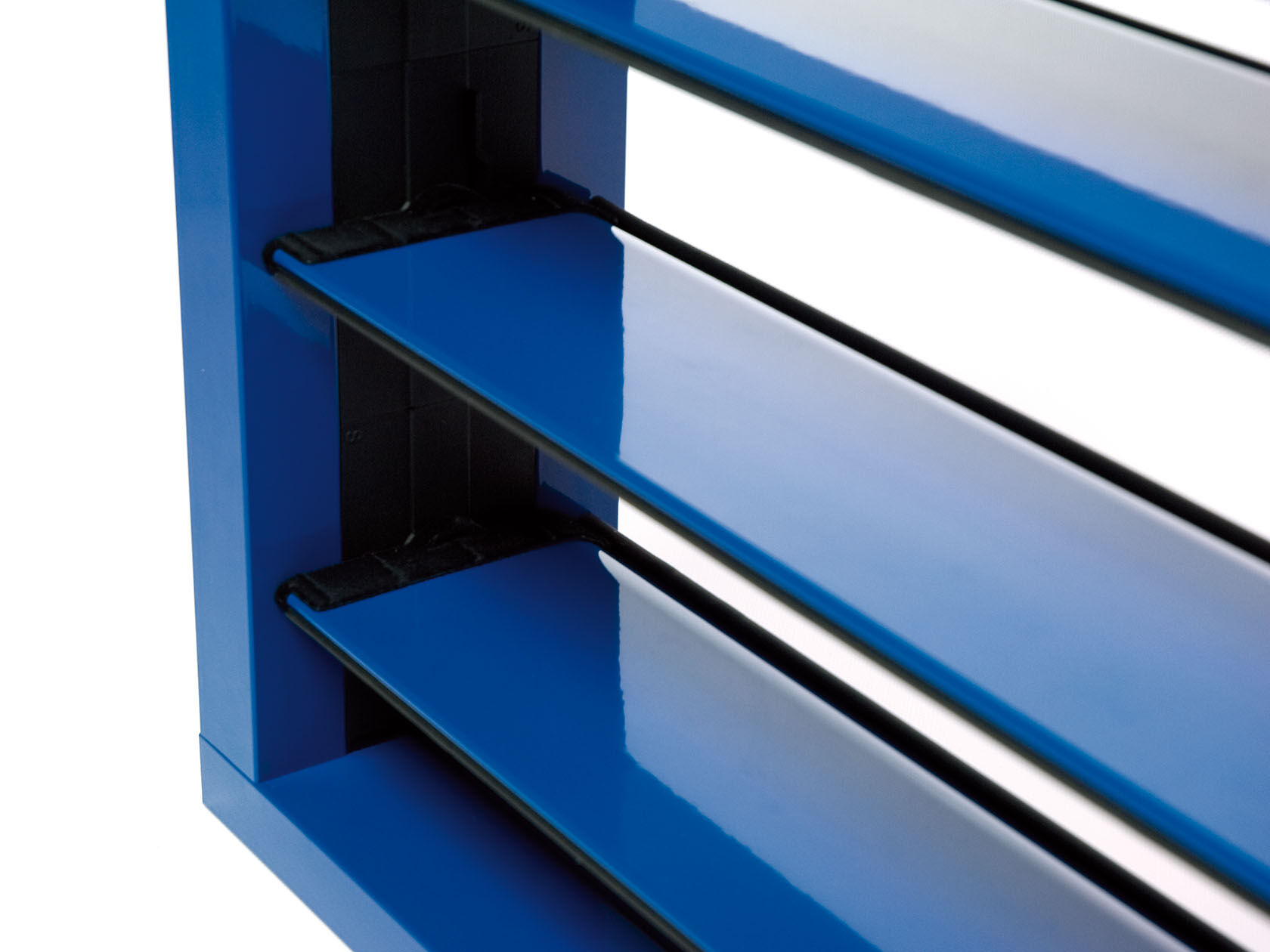

Our Low Leakage Dampers feature a 100mm / nominal 4” air foil blade with flocked end seals, all aluminum construction, and a fiberglass reinforced nylon gearing system that is housed internally. No failure due to rust, corrosion, or debris accumulation. Class 1A AMCA Certified. All of our dampers…
Select an image to see that part of the assembly.
- Material
- nylon
- Working Temperature: Minimum
- -20 °C
- Working Temperature: Maximum
- 80 °C
- Working Temperature: Single Section Maximum Width
- 55 in.
Air opening dimensions
Enter the clear air opening height and width, rather than outside frame dimensions. Add a row for each size.
DraftMATE sizing tool
Enter product dimensions and generate a drawing before you request a quote.
Size Your DamperOr call 713-538-2050 · Mon–Fri 7am–4pm CT
Our Low Leakage Dampers feature a 100mm / nominal 4” air foil blade with flocked end seals, all aluminum construction, and a fiberglass reinforced nylon gearing system that is housed internally. No failure due to rust, corrosion, or debris accumulation. Class 1A AMCA Certified. All of our dampers are made to order with short lead times. Single and multi-sectional dampers can be easily made for normal open/close operation as well as face & bypass operation.
What's inside
The parts that make up the Low Leakage Damper.
Frame
- Material:
- Aluminum 6063
- Dimension:
- Nominal 5 in wide, U-shape
- Treatment:
- T5
- Finish:
- Mill
CPS93
Gear Kit
- Material:
- Copolymer polypropylene and fiberglass
Part# CPS93
*Optional flame retardant V-5
Blade Blocks In Side and Intermediate Casing
- Material:
- Polyammide and fiberglass PA6 + GF 20%
- Color:
- Black
Control
- Material:
- Die-Cast Aluminum
- Material:
- EN AW 6060 Aluminum
1/2 in Galvanized Steel Square Control Shaft
Part# PFE190 – 190mm length
Part# PFE120 – 120mm length
*Optional Add-Ons
Part# MPS93 – Manual Handle
Part# PMS80 – Mounting plate for motor
VTE1000
Fasteners Used
- Material:
- Zinc-Plated Steel
Part# VTE1000 – 7mm hex-head screw
Part# Screw – 1/2″ Truss head
