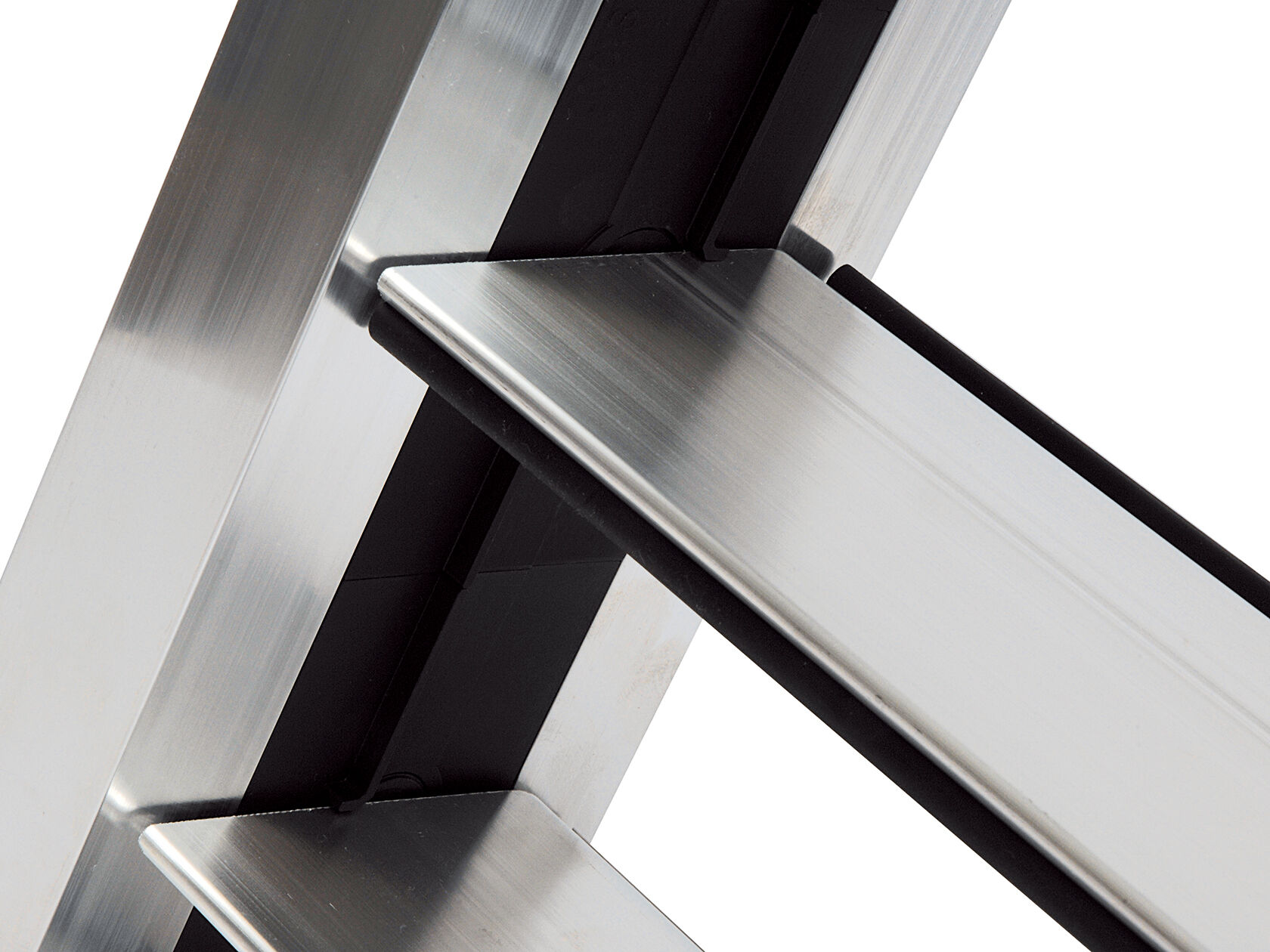

PS100
Blade
- Material:
- Aluminum 6063
- Dimension:
- 4 in / 100 mm
- Treatment:
- T5
- Finish:
- Mill
- GA12T Gasket:
- TPE-V and PP Thermoplastic Rubber
Part# PS100
Dampers
Standard Damper
Our Standard Opposed Blade Dampers feature a 100mm / nominal 4” air foil blade, all aluminum construction, and a fiberglass reinforced nylon gearing system that is housed internally. No failure due to rust, corrosion, or debris accumulation. Class 2 AMCA Certified. All of our dampers are made to…
Select an image to see that part of the assembly.
- Material
- nylon
- Working Temperature: Minimum
- -20 °C
- Working Temperature: Maximum
- 80 °C
- Working Temperature: Single Section Maximum Width
- 55 in.
Air opening dimensions
Enter the clear air opening height and width, rather than outside frame dimensions. Add a row for each size.
DraftMATE sizing tool
Enter product dimensions and generate a drawing before you request a quote.
Size Your DamperOr call 713-538-2050 · Mon–Fri 7am–4pm CT
Opposed Blade Aluminum Damper
Our Standard Opposed Blade Dampers feature a 100mm / nominal 4” air foil blade, all aluminum construction, and a fiberglass reinforced nylon gearing system that is housed internally. No failure due to rust, corrosion, or debris accumulation. Class 2 AMCA Certified. All of our dampers are made to order with short lead times. Single and multi-sectional dampers can be easily made for normal open/close operation as well as face & bypass operation.
What's inside
The parts that make up the Standard Damper.
Frame
- Material:
- Aluminum 6063
- Dimension:
- Nominal 5 in wide, U-shape
- Treatment:
- T5
- Finish:
- Mill
CPS93
Gear Kit
- Material:
- Copolymer polypropylene and fiberglass
Part# CPS93
*Optional flame retardant V-5
Blade Blocks In Side and Intermediate Casing
- Material:
- Polyammide and fiberglass PA6 + GF 20%
- Color:
- Black

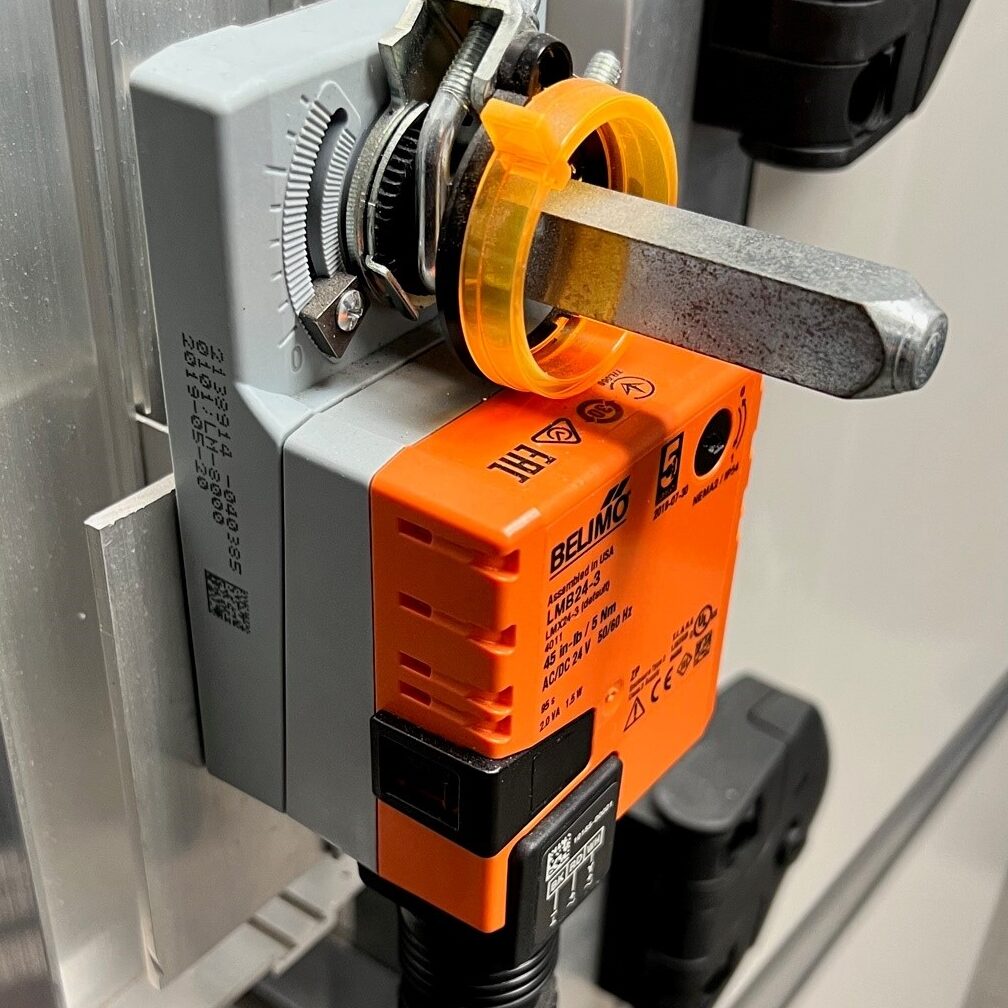

Control
- Material:
- Die-Cast Aluminum
- Material:
- EN AW 6060 Aluminum
1/2 in Galvanized Steel Square Control Shaft
Part# PFE190 – 190mm length
Part# PFE120 – 120mm length
*Optional Add-Ons
Part# MPS93 – Manual Handle
Part# PMS80 – Mounting plate for motor
VTE1000

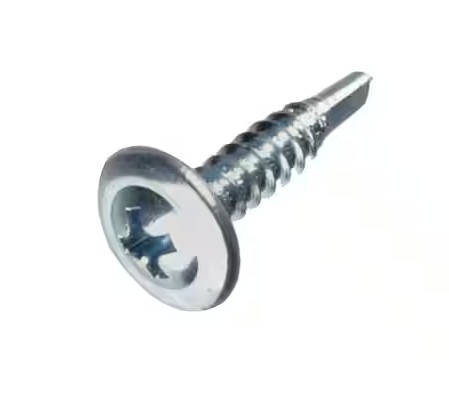

Fasteners Used
- Material:
- Zinc-Plated Steel
Part# VTE1000 – 7mm hex-head screw
Part# Screw – 1/2″ Truss head
